Article Text

Comparison of two anterior fusion methods in two-level cervical spondylosis myelopathy: a meta-analysis
  1. Zhe-Yu Huang,
  2. Ai-Min Wu,
  3. Qing-Long Li,
  4. Tao Lei,
  5. Kang-Yi Wang,
  6. Hua-Zi Xu,
  7. Wen-Fei Ni
  1. The Department of Orthopedics Surgery, Second Affiliated Hospital of Wenzhou Medical University, Wenzhou, China
  1. Correspondence to Dr Wen-Fei Ni; wenfeini{at}yeah.net

Abstract

Objective The aim of this study was to evaluate the efficacy and safety of anterior cervical corpectomy and fusion (ACCF) and anterior cervical discectomy and fusion (ACDF) for treating two-adjacent-level cervical spondylosis myelopathy (CSM).

Design A meta-analysis of the two anterior fusion methods was conducted. The electronic databases of PubMed, the Cochrane Central Register of Controlled Trials, ScienceDirect, CNKI, WANFANG DATA and CQVIP were searched. Quality assessment of the included studies was evaluated using the Cochrane Risk of Bias Tool and the Methodological Index for Non-Randomised Studies criteria. Pooled risk ratios of dichotomous outcomes and standardised mean differences (SMDs) of continuous outcomes were generated. Using the χ2 and I2 tests, the statistical heterogeneity was assessed. Subgroup and sensitivity analyses were also performed.

Participants Nine eligible trials with a total of 631 patients and a male-to-female ratio of 1.38:1 were included in this meta-analysis.

Inclusion criteria Randomised controlled trials (RCTs) and non-randomised controlled trials that adopted ACCF and ACDF to treat two-adjacent-level CSM were included.

Results No significant differences were identified between the two groups regarding hospital stay, the Japanese Orthopaedic Association (JOA) score, visual analogue scale (VAS) scores for neck and arm pain, total cervical range of motion (ROM), fusion ROM, fusion rate, adjacent-level ossification and complications, while ACDF had significantly less bleeding (SMD=1.14, 95% CI (0.74 to 1.53)); a shorter operation time (SMD=1.13, 95% CI (0.82 to 1.45)); greater cervical lordosis, total cervical (SMD=−2.95, 95% CI (−4.79 to −1.12)) and fused segment (SMD=−2.24, 95% CI (−3.31 to −1.17)); higher segmental height (SMD=−0.68, 95% CI (−1.03 to −0.34)) and less graft subsidence (SMD=0.40, 95% CI (0.06 to 0.75)) compared to ACCF.

Conclusions The results suggested that ACDF has more advantages compared to ACCF. However, additional high-quality RCTs and a longer follow-up duration are needed.

This is an Open Access article distributed in accordance with the Creative Commons Attribution Non Commercial (CC BY-NC 3.0) license, which permits others to distribute, remix, adapt, build upon this work non-commercially, and license their derivative works on different terms, provided the original work is properly cited and the use is non-commercial. See: http://creativecommons.org/licenses/by-nc/3.0/

Statistics from Altmetric.com

Request Permissions

If you wish to reuse any or all of this article please use the link below which will take you to the Copyright Clearance Center’s RightsLink service. You will be able to get a quick price and instant permission to reuse the content in many different ways.

Strengths and limitations of this study

  • According to our study, anterior cervical corpectomy and fusion (ACCF) and anterior cervical discectomy and fusion (ACDF) are effective and safe for treating cervical spondylosis myelopathy.

  • ACDF has more advantages than ACCF in some aspects.

  • The trials included in our study are not high-quality randomised controlled trials and do not have a long enough follow-up duration.

  • The number of studies used in the meta-analysis is small (nine studies). In fact, for most of the outcomes, fewer than five studies were used in the meta-analyses.

  • The pathological processes of patients are not always the same.

Introduction

Cervical spondylosis is a common disease and a progressive degenerative process of the cervical spine that results in loss of disc height and formation of osteophytes. When it develops into cervical spondylosis myelopathy (CSM), motion abnormalities and sensory disturbances will follow, resulting in a reduced quality of life for the patients.1 Surgical intervention is recommended for these patients with severe symptoms.2

The choice between an anterior, posterior or combined approach for decompression is based primarily on (1) the sagittal alignment of the spinal column, (2) the extent of disease, (3) the location of the abnormal compression, (4) the presence of preoperative neck pain and (5) previous operations.2

Shamji et al3 and Jiang et al4 have reviewed the efficacy and safety of anterior procedures for patients with multilevel CSM, covering patients with two-adjacent-level CSM. Furthermore, the work by Chang et al5 supports that anterior cervical discectomy and fusion (ACDF) is the treatment of choice for cervical disc herniation and spondylotic radiculopathy or myelopathy. In addition, Lu et al6 have shown that anterior cervical corpectomy and fusion (ACCF) is an effective surgical procedure for the treatment of multilevel cervical myelopathy because it can remove almost all osteophytes, discs and ossification of posterior longitudinal ligament pathology that cause spinal cord compression. Yonenobu et al7 and Kawakami et al8 have shown that ACDF and ACCF are widely used anterior methods for CSM, especially with two levels. Although patients with two-adjacent-level CSM are often seen in clinical practice, controversies still exist between ACCF and ACDF for treating these patients. Therefore, the aim of this meta-analysis was to compare the efficacy and safety of ACCF and ACDF for patients with two-adjacent-level CSM by assessing the perioperative, clinical and radiological outcomes as well as complications.

Materials and methods

Search strategy

The electronic databases including PubMed (1966–2013), the Cochrane Central Register of Controlled Trials (Issue 9, 2013), ScienceDirect (1985–2013), CNKI (1996–2013), WANFANG DATA (1997–2013) and CQVIP (1996–2013) were searched. The keywords used for the search were as follows: ‘cervical spondylosis myelopathy,’ ‘anterior cervical discectomy and fusion,’ ‘anterior cervical corpectomy and fusion,’ ‘two level(s)’ and ‘single-level.’

Eligibility criteria

All comparative studies that adopted ACCF and ACDF to treat two-adjacent-level cervical spondylosis were identified, and the reference lists of identified articles were searched to identify other potentially eligible studies. Criteria for inclusion were as follows: (1) ACCF with titanium mesh, cage or autologous ilium bone grafting; ACDF with interbody cage devices or autologous ilium bone grafting; and the two surgeries used anterior cervical plate and screw fixation. (2) All patients included had a confirmed CSM at two adjacent segments, and surgical intervention was recommended. (3) The trials were followed up for more than 12 months.

Criteria for exclusion were as follows: (1) The studies did not meet the inclusion criteria. (2) The intraoperative outcome data (length of hospital stay, amount of bleeding and operation time), clinical outcomes (Japanese Orthopaedic Association (JOA) score and visual analogue scale (VAS) score for neck and arm pain), radiological outcomes (cervical lordosis for total cervical and fused segments, total cervical range of motion (ROM), segmental ROM, graft collapse, segmental height, fusion rate and degeneration of the adjacent level) or complications (short-term and long-term complications) were not reported. (3) The number of samples was less than 30 cases. (4) The patients evaluated were treated at the same hospital.

Data extraction

Two reviewers independently extracted the data using a standardised form, which covered the following items: (1) basic characteristics, including the year of publication, study design, inclusion/exclusion criteria, age, sex, enrolled number and follow-up rate; (2) intraoperative outcomes, consisting of length of hospital stay, amount of bleeding and operation time; (3) clinical outcomes, including JOA score and VAS score for neck and arm pain; (4) radiological outcomes, such as cervical lordosis for total cervical and fused segments, total cervical ROM, segmental ROM, graft collapse, segmental height, fusion rate, degeneration of the adjacent level and (5) complications, including short-term and long-term complications.

Risk of bias assessment

Two reviewers independently evaluated the quality of the included studies. Three randomised studies9–11 were assessed with the Cochrane Handbook for Systematic Review of Interventions, and six non-randomised studies12–17 were evaluated according to the methodological index for non-randomised studies (MINORS) criteria, an established method for evaluating non-RCTs.18

Statistical analysis

All meta-analyses were performed with Review Manager 5.2 software (Cochrane Collaboration, Oxford, UK). For continuous outcomes, means and SDs were pooled to generate a standardised mean difference (SMD) and 95% CIs were generated. According to the study by Kim et al,17 a formula was used to obtain a combined mean and SD.19 For dichotomous outcomes, the risk ratio (RR) and 95% CI were assessed. A probability of p<0.05 was considered to be statistically significant. Assessment for statistical heterogeneity was calculated using the χ2 and I2 tests. When the test for heterogeneity was p<0.1 or I2>50%, the data were considered very heterogeneous. The source of heterogeneity was investigated by subgroup analysis and sensitivity analysis. A fixed effects model was used for homogeneous data, and a random effects model was used for data with high heterogeneity. As for the data with significant methodological heterogeneity, sensitivity analysis was adopted to find the source of the heterogeneity. With regard to the data with significant clinical heterogeneity, subgroup analyses were applied to identify the source of the heterogeneity.

Results

Literature search

A total of 606 potential reports were retrieved with the search strategy (figure 1). Of these, 597 reports were excluded because they did not fit our inclusion criteria. No additional studies were obtained after the reference review. Finally, nine studies were selected and analysed.9–17

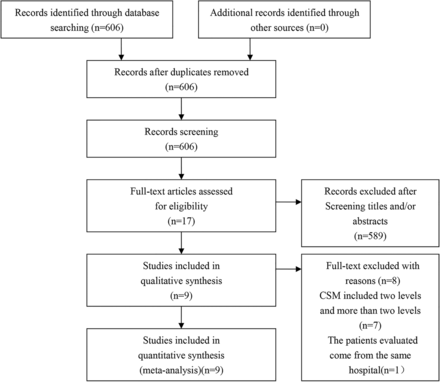

Figure 1

The search strategy for our meta-analysis and reasons for exclusion.

Risk of bias assessment

For three randomised studies,9–11 two studies were RCTs,9 ,11 one of which did not provide information regarding allocation concealment. One study was a quasi-RCT, in which patients were allocated according to their sequence of hospitalisation.10 Owing to the informed consent rights between patients and doctors, it was impossible to blind all participants and personnel. None of these three studies reported blinding of outcome assessment. No patients were lost to follow-up, except for eight patients who were excluded from the study by Liu et al11 due to missing data. Thus, there was a low risk of bias due to incomplete outcome data. In these three trials, the outcomes were provided in detail and there was a low risk of bias due to selective reporting. Owing to insufficient information to assess whether an important risk of bias existed in a number of trials, it was hypothesised that all trials had an unclear risk of bias towards other potential sources of bias. The methodological quality assessment is summarised in table 1. For six non-randomised studies,12–17 according to the modified MINORS criteria,18 none of them reported an unbiased assessment of the study end point or a prospective calculation of the study size. With regard to the prospective collection of data, three studies did not report the relevant information.13 ,15 ,17 Only one study reported the follow-up rate.14 The other eight items were all specifically reported. In summary, scores ranged from 16 to 18, with a median value of 16.5. The methodological quality assessment is summarised in table 2.

Table 1

Risk of bias assessment of randomised studies

Table 2

Quality assessment of non-randomised studies

Demographic characteristics

The demographic characteristics of the patients included in the selected studies are presented in table 3. A total of 631 patients, with a male-to-female ratio of 1.38:1, were included. Of these, 270 underwent ACCF procedures and 361 were treated by the ACDF approach; the two surgeries used various grafts, including autografts, allografts and cage and/or plate systems. The mean age of the patients was 55.1 years. The average duration of follow-up ranged from 18.9 to 43.2 months. Statistically similar baseline characteristics were observed between the ACCF and ACDF groups (table 4).

Table 3

Characteristics of the studies included in the meta-analysis

Table 4

Comparison of baseline characteristics between the ACCF and ACDF groups

Hospital stay

Details regarding hospital stay were available in three papers (see online supplementary table S1),9 ,11 ,16 and statistical heterogeneity was absent in these studies (I2=0%; p=0.69). The pooled estimate revealed a statistically insignificant difference (SMD=0.18, 95% CI (−0.15 to 0.51), p=0.28) (figure 2).

Figure 2

Perioperative parameters. (A) Forest plot and tabulated data for length of hospital stay; no significant difference between the two types of surgery was observed. (B) Forest plot and tabulated data for bleeding amount; the anterior cervical discectomy and fusion group had significantly less intraoperative bleeding than the anterior cervical corpectomy and fusion group.

Bleeding amount

Relevant data regarding the bleeding amount were documented in four articles (see online supplementary table S1),9–11 ,16 and all the trials showed that the ACDF approach had significantly reduced intraoperative bleeding amounts compared to the ACCF procedure. Pooling of relevant data also showed a statistically significant difference between the two groups (SMD=1.14, 95% CI (0.74 to 1.53), p=0.002). Significant heterogeneity was detected (I2=89%; p<0.00001) (figure 2B). In addition, sensitivity analysis confirmed the stability of bleeding amount outcomes (see online supplementary figure S1).

Operation time

Four trials reported a significantly shorter surgical time in the ACDF group compared to the ACCF group (see online supplementary table S1).9–11 ,16 Overall, the SMD was 1.13 (95% CI (0.82 to 1.45), p< 0.00001) in favour of the ACDF group. There was obvious evidence of statistically significant heterogeneity (I2=54%; p=0.009), according to the subgroup analysis (figure 3). Furthermore, sensitivity analysis confirmed the stability of operation time outcomes (see online supplementary figure S2).

Figure 3

Perioperative parameters. Forest plot and tabulated data for operation time; the anterior cervical discectomy and fusion group had a significantly shorter surgical time compared to the anterior cervical corpectomy and fusion group.

Japanese Orthopaedic Association

Three studies reported the JOA score (see online supplementary table S2),9 ,11 ,16 and the pooled estimate revealed a statistically insignificant difference (SMD=0.14, 95% CI (−0.19 to 0.47), p=0.41), with low heterogeneity (I2=12%) (figure 4A).

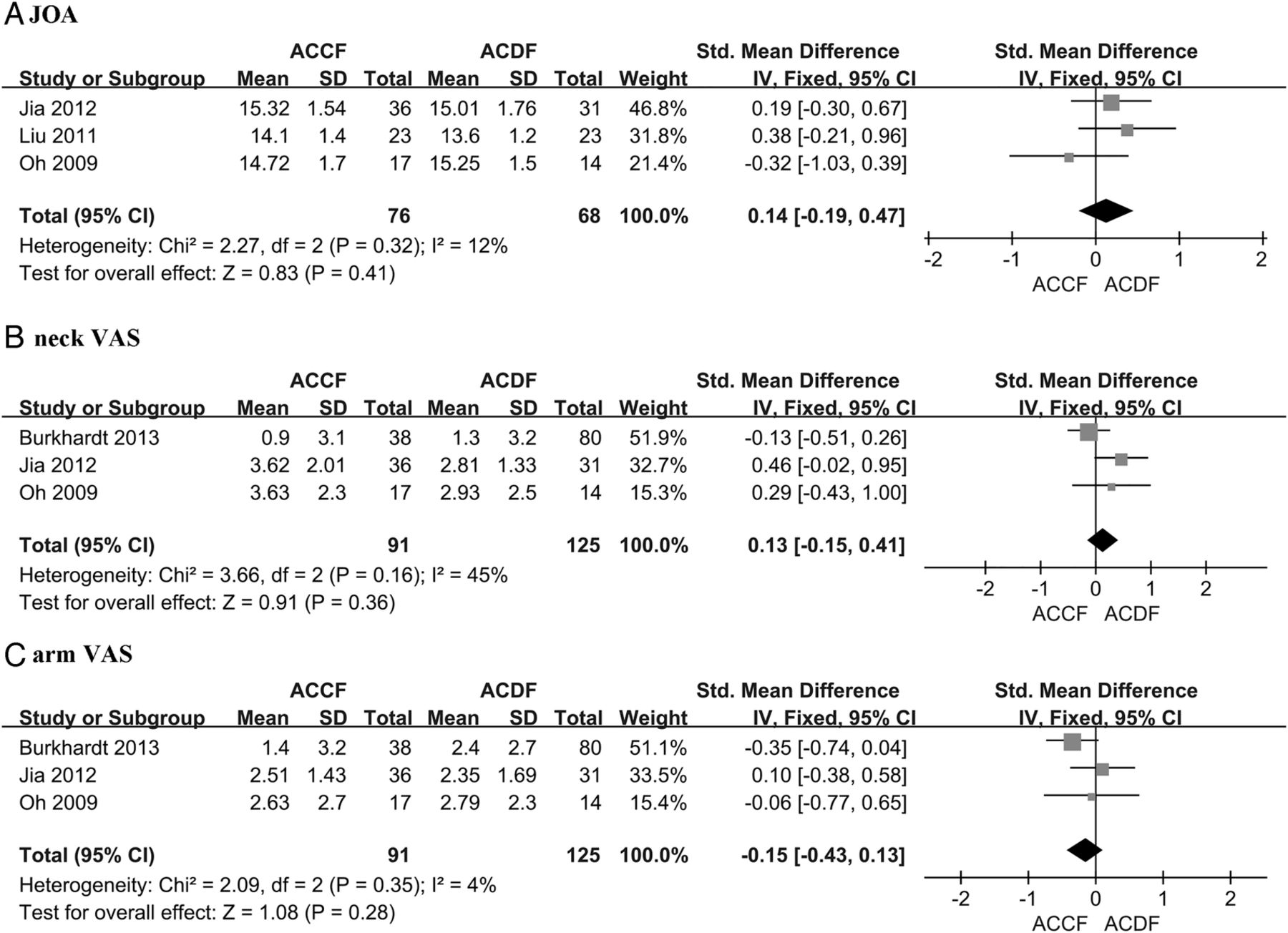

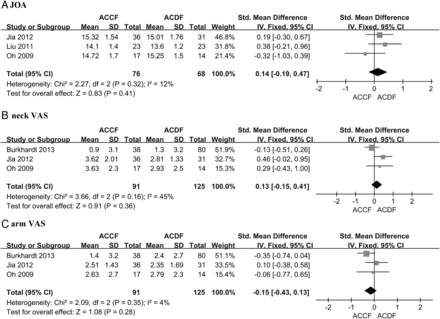

Figure 4

Clinical parameters. (A) Forest plot and tabulated data for the Japanese Orthopaedic Association; (B) Forest plot and tabulated data for the neck visual analogue scale; (C) Forest plot and tabulated data for the arm VAS. There were no significant differences in these parameters between the two types of surgery.

Neck VAS

Three studies reported a postoperative neck VAS score (see online supplementary table S2),9 ,14 ,16 and the pooled data from the two relevant studies did not reveal any significant difference (SMD=0.13, 95% CI (−0.15 to 0.41), p=0.36), with low heterogeneity (I2=45%) (figure 4B).

Arm VAS

Relevant VAS data were documented in three articles (see online supplementary table S2).9 ,14 ,16 There was no significant difference between the two treatment groups (SMD=−0.15, 95%CI (−0.43 to 0.13); p=0.28), with low heterogeneity (I2=4%; figure 4C).

C2–C7 Cobb

Five studies reported the C2–C7 Cobb at the final follow-up (see online supplementary table S3a);9 ,12 ,14 ,16 ,17 the available data demonstrated low heterogeneity (I2=8%), and the ACCF group had a significantly lower Cobb than the ACDF group (SMD=−0.32, 95% CI (−0.53 to −0.10), p=0.004; figure 5A).

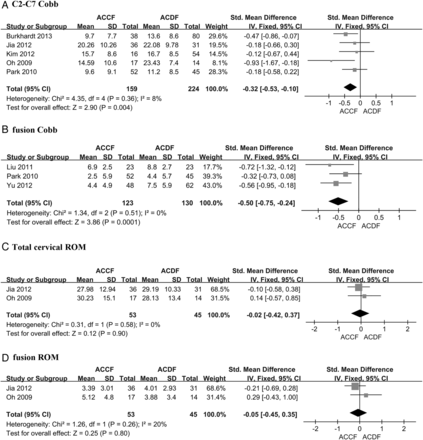

Figure 5

Radiological parameters. (A) Forest plot and tabulated data for C2–C7 Cobb; (B) Forest plot and tabulated data for fusion Cobb; (C) Forest plot and tabulated data for total cervical range of motion (ROM); (D) Forest plot and tabulated data for fusion ROM. The anterior cervical corpectomy and fusion group had a significantly lower Cobb than the anterior cervical discectomy and fusion group. There was no significant difference in the cervical or fusion ROM between the two types of surgery.

Fusion Cobb

Three studies reported the fusion Cobb at the final follow-up (see online supplementary table S3a);11 ,12 ,15 the available data demonstrated no heterogeneity (I2=0%), and the ACCF group had a significantly lower Cobb than the ACDF group (SMD=−0.50, 95% CI (−0.75 to −0.24), p=0.0001; figure 5B).

Total cervical ROM

Two studies reported the total cervical ROM data at the final follow-up (see online supplementary table S3b),9 ,16 and the other two studies demonstrated that there was no significant difference in total cervical ROM between the two groups (SMD=−0.02, 95% CI (−0.42 to 0.37), p=0.90), with no heterogeneity (I2=0%; figure 5C).

Fusion ROM

Two studies reported fusion ROM at the last follow-up (see online supplementary table S3b),9 ,16 and there was no significant difference in fusion ROM between the two groups (SMD=−0.05, 95% CI (−0.45 to 0.35), p=0.80), with low heterogeneity (I2=20%; figure 5D).

Fused segment height

Five studies reported the fused segment height data at the final follow-up (see online supplementary table S3b)9 ,11 ,14 ,16 ,17; however, data from three studies were excluded from this analysis because of the different methods used to measure the fused segment height.11 ,16 ,17 The pooled results demonstrated that the ACCF group had a significantly lower fused segment height than the ACDF group (SMD=−0.68, 95% CI (−1.03 to −0.34)), with high heterogeneity (I2=76%; figure 6A).

Figure 6

Radiological parameters. (A) Forest plot and tabulated data for the fused segment height; the anterior cervical corpectomy and fusion (ACCF) group had a significantly lower fused segment height than the anterior cervical discectomy and fusion (ACDF) group. (B) Forest plot and tabulated data for graft collapse; the ACDF group had a significantly lower graft collapse than the ACCF group.

Graft collapse

Two studies reported graft collapse at the last follow-up (see online supplementary table S3c),12 ,15 showing that there was a significant reduction in graft collapse for the ACDF group (SMD=0.40, 95% CI (0.06 to 0.75), p=0.02), with moderate heterogeneity (I2=68%; figure 6B). No significant clinical heterogeneity or methodological heterogeneity was found; however, statistical heterogeneity most likely exists, so the data from the two studies were pooled.

Fusion rate

Six studies reported the fusion rate at the last follow-up (see online supplementary table S3c),9 ,10 ,14–17 and there was no significant difference in the fusion rate between the two groups (RR=1.00, 95% CI (0.97 to 1.04), p=0.79), with no heterogeneity (I2=0%; figure 7A).

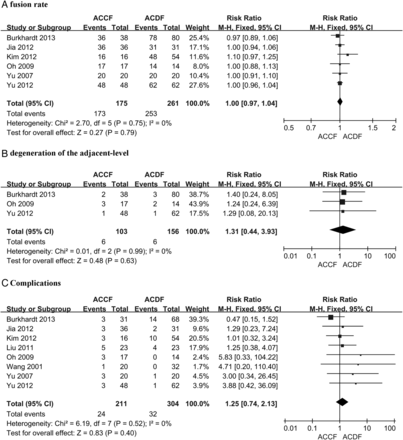

Figure 7

(A) Forest plot and tabulated data for fusion rate; (A) Forest plot and tabulated data for degeneration of the adjacent level; (C) Forest plot and tabulated data for complications. There was no significant difference in any of these parameters between the two types of surgery.

Degeneration

Three studies reported degeneration of the level adjacent to the fusion (see online supplementary table S3c),9 ,14 ,15 showing that there was no significant difference in degeneration of the level adjacent to the fusion between the two groups (RR=1.31, 95% CI (0.44 to 3.93), p=0.63), with no heterogeneity (I2=0%; figure 7B).

Complications

Data regarding complications were provided in eight studies (see online supplementary table S4).9–11 13–17 There was no significant difference between the ACCF and ACDF groups according to individual and pooled data (RR=1.25, 95%CI=(0.74 to 2.13); p=0.40). Statistical heterogeneity was absent in these studies (I2=0%; p=0.52; figure 7C).

Discussion

Although most studies included in this analysis reported consistent results,9–17 the pooled estimates should be explained with caution. With regard to the operative outcomes, the length of hospital stay was similar in both groups, and less blood loss and a shorter operation time were observed in the ACDF group than in the ACCF group. ACDF requires less exposure of the spinal cord than does corpectomy2; therefore, less damage to the spinal column occurs. Accordingly, ACDF might result in less blood loss than ACCF. In terms of ACCF, a 15–19 mm anterior midline trough should be performed in the vertebral body down to the posterior longitudinal ligament or dura, with removal of the cephalad and caudad discs,2 which would require more time to be removed; similarly it will cost more time to obtain a graft material to fit the trough. Consequently, ACDF had a significantly shorter operation time.

In our meta-analysis, JOA scores as well as VAS scores for neck and arm pain significantly improved in each group, without significant differences between the two groups. These results suggest that both procedures effectively treat two-adjacent-level CSM and improve the patients’ neurological function, quality of life and disability. Similar outcomes were achieved for ACDF and ACCF in the treatment of multilevel cervical spondylosis by Shamji et al3 and Jiang et al.4

Total cervical ROM, fusion ROM, fusion rate and adjacent-level ossification yielded no significant differences between the two groups. Concerning the high-fusion rate in the two groups, it may be related to the following factors: (1) the use of a polyether ether ketone (PEEK) cage or titanium mesh packed with autogenous tricortical bone and fixed by titanium plates and screws or by Atlantis plate fixation9–17; (2) the fixation system provides a stable biomechanical environment, which greatly promotes bone healing; and (3) bone healing is a process of creeping substitution,20 and the distance of creeping substitution for single-level ACCF and two-level ACDF are short. The high-fusion rate effectively reduced the total cervical and fused segment ROM. For example, Eck et al21 demonstrated that a significantly greater adjacent level disc pressure was achieved after cervical fusion. In addition, the normal degenerative process plays a major role through impaired nutrition, loss of viable cells, matrix protein modification and matrix failure.22 This normal ageing process, in combination with increased mechanical pressures, may synergistically hasten the degeneration process, although it has not been conclusively demonstrated.23

For C2–C7 Cobb, ACDF had a significantly greater lordosis angle than ACCF, not only immediately postoperation but also at the final follow-up. Similar results were found for the fusion Cobb at the last follow-up. The reasons may be associated with the following two factors: (1) Single-level ACCF removes the vertebral body and two discs, while two-level ACDF just takes out the two discs2; as a result, ACDF allows the construction of an almost normal spinal column after surgery. Thus, the loss of Cobb is less common in ACDF. In other words, ACDF preserves the sagittal alignment somewhat better than does ACCF. (2) Eck et al21 have reported that each of the involved joints contributes to the total ROM. With fusion, the contribution of one joint to ROM is reduced.

In terms of the fused segment height, ACCF causes a significant reduction compared to ACDF, both immediately postoperative and at the last follow-up. With ACDF, screws placed in the intervening segment and two caudal end plates synergistically share the load of the construct. In contrast, with a single-level corpectomy, screws are only at the cranial and caudal vertebral segments and the caudal end plate bears the full load of the construct.12 Additionally, the graft contact area is less for ACCF than for ACDF, which results in a higher shear stress for ACCF. These reasons might hasten the graft absorption process into the cover plate of the adjacent vertebral body, leading to a significant subsidence of the treated segment in ACCF, especially at the anterior and caudal positions.

Concerning complications, the data show that there is no significant difference between the two groups and that the incidence of complications is low in each group. This result suggests that both the treatments are safe.

The methodological quality assessment should be considered, which identified several limitations of the clinical evidence. Only nine studies met the predefined eligibility criteria, meaning that all the results were based on only 631 patients. More importantly, there were only three studies that were randomised. All randomised studies had poor concealment of randomisation, including selection and allocation bias. Owing to informed consent requirements, patients and operators had knowledge regarding the surgical procedures, thus allowing further measurement and expectation bias. Four outcomes (bleeding amount, operation time, fused segment height and graft collapse) had a high heterogeneity. Wu et al24 have summarised a method to deal with heterogeneity in meta-analysis. For the bleeding amount, it was reasonable to perform sensitivity analysis (see online supplementary figure S1) because of the different research types. As shown in online supplementary figure S1, the results of Jia et al16 have significant heterogeneity, which should be removed. The bleeding amount results are shown in figure 2B. Regarding the operation time, sensitivity analysis was performed to analyse the data because of the different research types. As shown by the sensitivity analysis results (see online supplementary figure S2), ACDF had a shorter operation time that could not be reversed regardless of which study was removed. Therefore, the heterogeneity did not come from the methodological heterogeneity. Accordingly, there probably exists clinical heterogeneity. Owing to the strict eligibility criteria, the patient data had a good homogeneity; thus, the heterogeneity was due to the ability of the surgeons. The subgroup analysis results regarding operation time are shown in figure 3. As for the fused segment height, clinical heterogeneity existed. Oh et al9 and Burkhardt et al14 have defined the fused segment height as the distance between the midlines of the involved cranial vertebral bodies and the caudal vertebral bodies. In contrast, Jia et al16 did not describe the method to measure the fused segment height. Meanwhile, Liu et al11 and Kim et al17 reported the anterior and posterior heights of the involved vertebral bodies. In summary, for the fused segment height, we pooled the data of Oh et al9 and Burkhardt et al,14 and the outcome is displayed in figure 6A. With regard to graft collapse, as the two literature examples are both retrospective studies, it is believed that no methodological heterogeneity existed. Regarding the clinical heterogeneity, the patient data had a good homogeneity due to the strict eligibility criteria and the fact that the methods of measuring the graft collapse were the same. As a result, no significant clinical heterogeneity or methodological heterogeneity was found. However, statistical heterogeneity most likely existed, so the studies were pooled. Not all of the included studies had consistent baseline characteristics between the ACCF and ACDF groups. Therefore, larger randomised controlled trials of high quality are still needed in the future to compare the two surgeries.

Conclusion

Based on this meta-analysis that compared ACDF and ACCF to treat two-adjacent-level CSM, ACDF has some advantages such as less blood loss, a shorter operation time, greater cervical lordosis in the total cervical and fused segments, a higher segmental height and less graft subsidence. However, no significant differences in JOA, VAS, ROM or complications were found. This information will provide surgeons a preliminary understanding of the differences between the two surgeries to treat two-adjacent-level CSM and help clinical surgeons choose the right surgical method to treat patients with two-adjacent-level CSM. Further high-quality RCTs and longer follow-up durations are needed to assess these two treatments.
