Article Text
Abstract
Objectives Our objectives were to review the literature to identify frailty instruments in use for transcatheter aortic valve implantation (TAVI) recipients and synthesise prognostic data from these studies, in order to inform clinical management of frail patients undergoing TAVI.
Methods We systematically reviewed the literature published in 2006 or later. We included studies of patients with aortic stenosis, diagnosed as frail, who underwent a TAVI procedure that reported mortality or clinical outcomes. We categorised the frailty instruments and reported on the prevalence of frailty in each study. We summarised the frequency of clinical outcomes and pooled outcomes from multiple studies. We explored heterogeneity and performed subgroup analysis, where possible. We also used Grading of Recommendations, Assessment, Development and Evaluation (GRADE) to assess the overall certainty of the estimates.
Results Of 49 included studies, 21 used single-dimension measures to assess frailty, 3 used administrative data-based measures, and 25 used multidimensional measures. Prevalence of frailty ranged from 5.67% to 90.07%. Albumin was the most commonly used single-dimension frailty measure and the Fried or modified Fried phenotype were the most commonly used multidimensional measures. Meta-analyses of studies that used either the Fried or modified Fried phenotype showed a 30-day mortality of 7.86% (95% CI 5.20% to 11.70%) and a 1-year mortality of 26.91% (95% CI 21.50% to 33.11%). The GRADE system suggests very low certainty of the respective estimates.
Conclusions Frailty instruments varied across studies, leading to a wide range of frailty prevalence estimates for TAVI recipients and substantial heterogeneity. The results provide clinicians, patients and healthcare administrators, with potentially useful information on the prognosis of frail patients undergoing TAVI. This review highlights the need for standardisation of frailty measurement to promote consistency.
PROSPERO registration number CRD42018090597.
- valvular heart disease
- epidemiology
- cardiac surgery
- vascular surgery
This is an open access article distributed in accordance with the Creative Commons Attribution Non Commercial (CC BY-NC 4.0) license, which permits others to distribute, remix, adapt, build upon this work non-commercially, and license their derivative works on different terms, provided the original work is properly cited, appropriate credit is given, any changes made indicated, and the use is non-commercial. See: http://creativecommons.org/licenses/by-nc/4.0/.
Statistics from Altmetric.com
Strengths and limitations of this study
This study examines the heterogeneity across different frailty assessment tools and determines the frequency of adverse outcomes and pools the prognosis after transcatheter aortic valve implantation in frail patients.
This study uses a comprehensive literature search strategy and includes frail patients from randomised controlled trials and observational studies.
This study excluded studies in which dimensions of frailty were assessed without reference to the goal of frailty assessment.
Inrtoduction
Transcatheter aortic valve implantation (TAVI) has become an alternative, less invasive treatment option for patients with severe symptomatic aortic stenosis.1 The evidence continues to accumulate and synthesis of the evidence to better understand the prognosis of frail patients who undergo TAVI may be helpful.2
Frailty is a biological syndrome characterised by an increased vulnerability to stressors.3 When exposed to stressors, such as chronic illness and surgery, frail patients are susceptible to adverse events, procedural complications, prolonged recovery, functional decline and reduced survival.4 Clinical research has identified frailty as an important risk factor for mortality and morbidity following TAVI.5 Health economics research has shown that compared with non-frail patients, frail older adults undergoing cardiac surgery incurred substantially higher hospitalisation costs.6 Given the clinical and economic implications of TAVI, searching for and synthesising outcomes of frail patients undergoing TAVI may provide information that can help to optimise the selection of TAVI candidates and ultimately improve decision making related to treatment of aortic stenosis.2
When considering valve procedures, clinical practice guidelines recommend assessing frailty as one component of risk.7 We performed a systematic review of the literature to identify studies reporting the prognosis of frail patients undergoing TAVI. With no single standard method of measuring frailty and a diversity of frailty measurements, the optimal approach to assessing frailty in patients undergoing TAVI is unclear.2 5 We catalogued frailty measures used in identified studies, to perform subgroup analyses for studies using the most common measures.
Methods
This systematic review and meta-analysis is reported according to the Preferred Reporting Items for Systematic Reviews and Meta Analyses
guidelines8 and follows the Meta-analysis Of Observational Studies in Epidemiology guidelines.9
Literature search and eligibility criteria
We searched PubMed, EMBASE, PsycINFO, Cochrane Library, Web of Science and ClinicalTrials.gov for articles published between January 2006 and 23 September 2020 (online supplemental appendix A). Conference abstracts from relevant conferences held in the last 3 years were also searched. The detailed inclusion and exclusion criteria were described in detail in the protocol.10 We included patients with aortic stenosis, diagnosed as frail, who underwent a TAVI procedure. We only included studies that intended to measure frailty with a defined method of frailty assessment. Studies were excluded if baseline frailty status was measured after the TAVI procedure. We included all forms of TAVI, regardless of procedural approach and types of valves. Outcome measures included mortality, clinical outcomes or quality of life. We included studies describing non-comparative cohorts of patients undergoing TAVI who have been diagnosed with frailty and studies describing comparative cohorts of frail and non-frail patients undergoing TAVI in which outcomes were reported separately for frail patients. Authors (ZL, ED, AH, RB and MY) independently assessed study eligibility. Disagreements were resolved by consulting a third reviewer.
Supplemental material
Risk of bias assessment
The risk of bias in individual studies was appraised independently by two authors (ZL and ED) using the Quality in Prognosis Studies (QUIPS) tool.11 We classified studies with four or five low risk domains as having a low risk of bias overall, studies with two or more high-risk domains as high risk of bias overall, and the remaining studies as moderate risk of bias overall.
Data synthesis and meta-analysis
Prespecified statistical details were described in the protocol.10 We summarised the method of measuring frailty used in each study including the frailty tool used, dimensions of frailty measured, the cut-off for frail status and the prevalence of frailty in the study population as measured by the frailty tool. We only extracted data from the most commonly used frailty instruments if multiple frailty instruments were applied in the same patient group. We categorised clinical outcomes and reported the frequency at each time point. Heterogeneity across studies was assessed using the I2 statistic.12
For adverse clinical outcomes, we pooled proportions using the inverse-variance weighted DerSimonian and Laird model and incorporated the Freeman-Tukey double arcsine transformation.13 14 A funnel plot was used to plot the effect estimates from individual studies against the SE of each study. In the absence of bias and heterogeneity, the funnel plot will be symmetrical.15 For the length of hospitalisation, we pooled the values, estimating the mean and SD using the random effects model for continuous variables.16 For studies presenting Kaplan-Meier curves with time to death, we collected the information on numbers at risk and total number of events, and then created a single pooled Kaplan-Meier curve. We pooled time to death data from individual studies to obtain an overall estimate of survival, based on an algorithm developed by Guyot et al.17 All analyses were conducted using R software (V.3.5.0). A two-sided p value of 0.05 or less was considered statistically significant.
Subgroup analysis
We conducted a subgroup analysis to see if the estimates of mortality rates differed for studies that used the Fried phenotype, the most common multidimensional measure, compared with studies that did not use the Fried phenotype.
Grading of Recommendations, Assessment, Development and Evaluation assessment
We used the Grading of Recommendations, Assessment, Development and Evaluation (GRADE) system to conduct an evaluation of the overall estimates based on considerations of risk of bias, consistency, precision, directness and publication bias.18 Given that cohort studies of prognosis exclude randomised controlled trial study designs, we did not downgrade the certainty of evidence due to observational study design.
Patient and public involvement
No patient involved.
Results
Characteristics of included studies
Our search identified 4944 records with 2635 articles remaining after removing duplicates. After screening, 49 studies19–67 were identified as eligible for inclusion in the review (figure 1).

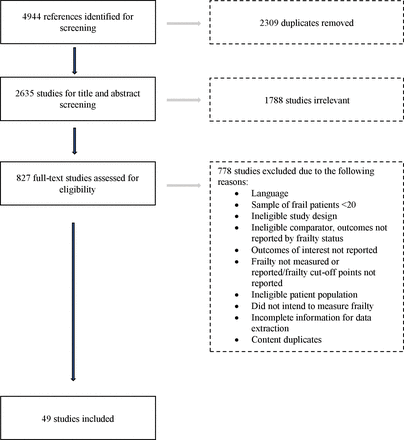

PRISMA flow diagram of included studies. PRISMA, Preferred Reporting Items for Systematic Reviews and Meta-Analyses
The characteristics of the included studies are summarised in online supplemental appendix B. Three studies40 43 53 enrolled patients from the Placement of Aortic Transcatheter Valves trial reporting separately on outcomes of frail patients; the remaining studies reported on patients from a single cohort or registry. Most studies collected patient data prospectively; 17 studies21 23 24 26 32 35 38 41 43 45 46 48 57 60–62 65 were conducted retrospectively.
Supplemental material
Online supplemental appendix C summarises the risk of bias assessment of individual studies. Of the 49 studies, 2125 26 28 29 31 33 37 39 40 47 49 52 55 58–60 62–66 were rated at overall low risk of bias, 21,19–24 32 35 36 42–45 48 50 51 53 54 56 61 at moderate risk and 727 38 41 46 50 57 67 at high risk of bias.
Supplemental material
Measurement of frailty in patients undergoing TAVI
Table 1 summarises frailty assessment in patients undergoing TAVI. Twenty-one studies19–33 54–59 used single-dimension measures, 3 studies60–62 used administrative data-based measures and 25 studies34–53 63–67 used multidimensional measures. The prevalence of frailty varied widely among studies that assessed frailty with single dimension measures, ranging from 5.67% to 90.07%. Albumin, body mass index, and Katz Activity of Daily Living were the three most commonly used single-dimension measures when assessing frailty in TAVI patients. However, even with the same measure, different cut-points or definitions of frailty were used. For example, four studies21 23 24 59 used albumin to assess frailty; two21 23 defined frailty as albumin level below 4 g/dL, and two24 59 as albumin level below 3.5 g/dL.
Frailty assessment in patients undergoing TAVI
Among studies that used frailty indices based on administrative data, the prevalence of frailty ranged from 5.54% to 47.64%. Two studies60 62 used the Hospital Frailty Risk Score, a frailty algorithm calculated based on a list of predefined International Statistical Classification of Diseases and Related Health Problems, Tenth Revision diagnostic codes. Frailty prevalence reported among the two studies was 41.06% and 47.64%, respectively. One study61 used the Johns Hopkins Adjusted Clinical Groups frailty-defining diagnosis indicator that was based on 10 clusters of frailty-defining diagnoses.
The prevalence of frailty reported by studies that assessed frailty using multidimensional measures ranged from 15.23% to 84.67%. Most of these studies assessed frailty based on the Fried frailty phenotype; one study34 assessed frailty based on the accumulated deficits frailty index. Of the 25 studies reporting multidimensional measures, four46–48 51 used the original Fried frailty phenotype and eight35 38–41 43 44 53 modified the Fried frailty phenotype by examining fewer dimensions, altering cut-off values or measuring the same domains with different criteria. Among the eight studies35 38–41 43 44 53 reporting the modified Fried frailty phenotype, measures used to assess mobility and disability were identical. Measures used to assess nutrition were different; seven studies35 38–40 43 44 53 measured serum albumin and one study41 measured weight loss.
Prognosis of frail TAVI recipients
Online supplemental appendix D summarises prognosis of frail TAVI recipients reported for each study. Twenty studies19 21 27–31 34–36 40 41 43 50 53 56 58 62 65 66 reported 30-day mortality, which ranged from 2.83% to 25%; the combined 30-day mortality estimate was 7.32% (95% CI 5.66% to 9.42%, table 2, figure 2). Combining three studies35 40 41 that measured frailty using the modified Fried frailty phenotype, we estimated a 30-day mortality of 7.86% (5.20% to 11.70%, table 2, figure 2).
Supplemental material
(A) Meta-analysis of 30-day mortality in frail patients after TAVI. Frailty was measured using sing and multidimensional measures, including administrative database algorithms. The squares indicate the 30-day mortality reported by each study. The horizontal lines indicate the magnitude of the CI. The diamond indicates the pooled estimate for 30-day mortality. (B) Funnel plots, using data from all studies that reported 30-day mortality. The y-axis is the SE of the 30-day mortality. The x-axis is the logit of 30-day mortality. (C) Meta-analysis of 30-day mortality in frail patients after TAVI. Frailty was measured using modified Fried frailty phenotype. The squares indicate the 30-day mortality reported by each study. The horizontal lines indicate the magnitude of the CI. The diamond indicates the pooled estimate for 30-day mortality. (D) Funnel plots, using data from studies that frailty was measured using modified Fried frailty phenotype. The y-axis is the SE of the 30-day mortality. The x-axis is the logit of 30-day mortality. CI, confidence interval; SE, standard error; TAVI, transcatheter aortic valve implantation.
Results of meta-analysis and GRADE assessment*
Fifteen studies25 30 31 34 35 37 40 43 46 49 50 53 56 58 62 reported 1 year mortality, ranging from 14.8% to 37.5%. The combined 1 year mortality estimate was 23.98% (20.71% to 27.58%, table 2, figure 3).When pooling two studies35 46 that used the Fried or modified Fried frailty phenotype to assess frailty, the estimated 1-year mortality was 26.91% (21.50% to 33.11%, table 2, figure 3). Subgroup analyses of studies reporting frailty measurement using the Fried phenotype compared with non-Fried phenotype did not find statistical differences in effect estimates on 30-day and 1-year mortality (online supplemental appendix E).
Supplemental material
(A) Meta-analysis of 1-year mortality in frail patients after TAVI. Frailty was measured using single and multidimensional measures, including administrative database algorithms. The squares indicate the 1-year mortality reported by each study. The horizontal lines indicate the magnitude of the CI. The diamond indicates the pooled estimate for 1-year mortality. (B) Funnel plots, using data from all studies that reported 30-day mortality. The y-axis is the SE of the 1-year mortality. The x-axis is the logit of 1-year mortality. (C) Meta-analysis of 1-year mortality in frail patients after TAVI. Frailty was measured using the Fried frailty phenotype. The squares indicate the 1-year mortality reported by each study. The horizontal lines indicate the magnitude of the CI. The diamond indicates the pooled estimate for 1-year mortality. (D) Funnel plots, using data from studies that frailty was measured using modified Fried frailty phenotype. The y-axis is the SE of the 1-year mortality. The x-axis is the logit of 1-year mortality. CI, confidence interval; SE, standard error; TAVI, transcatheter aortic valve implantation.
Seventeen studies22 23 25–29 31 33 34 40 41 47 48 52 56 58 60 62 reported survival of frail patients after TAVI using a Kaplan-Meier curve. The combined survival estimates at 1, 2 and 3 years were 75.6% (95% CI 75.2% to 76.0%, table 2), 65.0% (95% CI 63.3% to 66.7%, table 2) and 48.7% (95% CI 43.3% to 54.7%, table 2), respectively. Combining the studies that used the Fried or modified Fried phenotype, we found survival estimates at 1, 2 and 3 years were 73% (95% CI 68.8% to 77.5%, table 2), 64.5% (95% CI 56.4% to 73.9%, table 2) and 58.9% (95% CI 49% to 70.9%, table 2), respectively. Details of survival are provided in online supplemental appendix F.
Supplemental material
Five studies42 44 63 65 67 measured health-related quality of life (online supplemental appendix G). Three studies44 65 67 assessed quality of life preoperatively using the 12-item Kansas City Cardiomyopathy Questionnaire (KCCQ). Two studies65 67 assessed quality of life post-TAVI; both studies found improved quality of life overall. Okoh et al44 assessed quality of life at 30 days following TAVI, and found that at 30 days, frail patients reported worsening in two domains, KCCQ-symptoms and KCCQ physical limitation, but quality of life improved slightly overall. Kobe et al42 assessed quality of life before and 30 days after TAVI using the Short Form-36 questionnaire; they found that at 30-day follow-up, the mean scores of all but role physical and social functioning were significantly lower for frail patients. Goudzwaard et al63 assessed quality of life using the Euro-QoL-5-dimension (EQ-5D) scale; they found that at 12 months follow-up, the mean EQ-5D decreased while the mean EQ-Visual Analogue Scale increased.
Supplemental material
Other commonly reported outcomes measuring the prognosis of frail TAVI recipients include procedural acute kidney injury (ranging from 3.95% to 20.51%), conversion to open heart surgery (ranging from 0% to 9.9%), life-threatening bleeding (ranging from 4.86% to 16.7%), major bleeding (ranging from 2.56% to 21.81%), permanent pacemaker implantation (ranging from 2% to 12.82%) and stroke (ranging from 0% to 8.3%). Eight studies32 33 38 39 41 44 45 56 reported the mean length of hospitalisation, ranging from 5 days to 12.1 days.
GRADE assessment
The GRADE certainty assessment per outcome, together with the pooled effects, is provided in table 2. Due to inconsistency as influenced by heterogeneity of estimates and indirectness of frailty measures as influenced by lack of homogeneity across the TAVI populations, confidence in the overall estimates was very low.
Discussion
Principal findings
We found that multidimensional measures are more commonly used than single-dimension measures. Even with the same frailty measure, different definitions or cut-offs were used. The most frequently used frailty measure in the studies we identified was the modified Fried phenotype, in which disability, muscle strength, mobility and nutrition were assessed. Approaches to modifying the Fried phenotype included measuring fewer domains, using different cut-offs or using different tools to assess the same domain.
Greater heterogeneity of meta-analyses that included single measures suggests single measures did not measure the same frailty construct and did not reliably measure frailty. Single measures included a mix of biological variables (albumin and BMI) or single performance measures (gait speed or activities of daily living), which address only a single component of the frailty construct. Thus, our study suggests that frailty is a multidimensional phenomenon that cannot be captured by a single construct.
The variety of frailty definitions and the diversity of TAVI populations in the studies contribute to the wide range and substantial heterogeneity of patient outcomes after TAVI.
Using GRADE to assess confidence in prognosis estimates from the meta-analyses, we found very low confidence in the overall estimates, mainly due to inconsistency as influenced by heterogeneity of estimates and indirectness of frailty measures as influenced by lack of homogeneity across the TAVI populations identified in the studies.
Comparison with other studies
Previous studies demonstrated that the assessment of frailty significantly enhances prediction of mortality after TAVI when combined with the European system for cardiac operative risk evaluation (EuroSCORE) or the Society of Thoracic Surgeons (STS) score.49 There have been several studies reviewing frailty in cardiac surgical populations. Kim et al5 conducted a systematic review of frailty instruments in older adults undergoing cardiac surgical procedures. Kim et al5 found high-quality evidence that used mobility assessment as a single frailty measure and found mobility to be the most frequently assessed domain. Sepehri et al68 performed a systematic review to demonstrate the association of frailty with negative postoperative outcomes in patients undergoing cardiac surgery. Our study adds to the existing literature as we investigate the frequency of adverse outcomes and pool estimates of survival after TAVI in frail patients from multiple studies.
The FRAILTY-AVR study69 examined the validity of frailty measures in predicting mortality among TAVI recipients. The study added value to the literature by selecting frailty elements with the greatest predictive value, finding that the Essential Frailty Toolset (EFT) consisting of chair rise, cognition measured by the Mini-Mental State Examination, haemoglobin and serum albumin, performed best for predicting 1-year mortality.69 Due to the focus on predictive validity, the FRAILTY-AVR study69 did not report outcomes separately for frail patients. As a result, the study69 did not meet the inclusion criteria for our systematic review, which was focused on prognostic information among frail patients only. The FRAILTY-AVR study69 makes important efforts to define a standard frailty assessment tool. Although the Fried and modified Fried were the most commonly used instruments among studies included in our meta-analysis, the FRAILTY-AVR showed the Fried did not perform as well as the EFT in predicting mortality among TAVI patients.69 We suggest the use of a standard measure, such as the EFT, can enhance the quality of frailty research in the TAVI patient population. We also recognise that use of a standard frailty measure is unlikely as researchers and clinicians may value use of diverse measures which reflect different aspects of frailty. If the EFT emerges as a standard, it may be used by clinicians to exclude frail patients from treatment, due to concerns about increased mortality. This would limit the opportunity to better understand the prognosis of frail patients undergoing TAVI, which was the primary goal of our study.
Strengths and limitations
This review has several unique strengths. We performed a comprehensive literature search to identify both published and unpublished studies, in addition to searching citations from previous reviews. We included prognostic data from randomised controlled trials and observational studies. Using the QUIPS tool, two reviewers independently assessed the risk of bias, and the use of the GRADE system to assess the certainty of evidence offers a structured and transparent evaluation of our findings. We systematically reviewed the operationalisation of frailty assessment in TAVI patients, and pooled clinical outcomes of frail TAVI recipients. We tested for heterogeneity and attempted to address heterogeneity by performing sensitivity analysis and subgroup analysis.
This review has some important limitations. Given the limited data reported by the included studies, we were unable to perform meta-regression to further investigate the potential sources of heterogeneity and to determine the influence of mean age on outcomes. We, therefore, explored the causes and types of heterogeneity relying on the investigation of the I2 statistic, which may be imprecise when the number of studies is small.70 When extracting data, we encountered several studies that applied multiple frailty instruments in the same patient group, and in this situation, we only extracted data from the most commonly used frailty instrument, and this may introduce selection bias. Some studies defined an intermediate ‘prefrail’ group, but we did not find sufficient data to synthesise outcomes for this important sub-group. Though less vulnerable than the frail group, prefrail patients may be at higher risk than robust patients for experiencing adverse outcomes.71 72 Individual-patient level data were not available, precluding adjustment for any study level differences in clinical or procedural variables that may have influenced prognosis across the cohorts. Therefore, clinical heterogeneity could not be ruled out and along with high levels of heterogeneity, resulted in lower GRADE evaluations. The aim of this study was to characterise prognosis for frail patients undergoing TAVI, therefore, we did not directly compare prognosis to other groups of patients or to frail patients undergoing different therapies, nor were we able to determine which frailty measures perform best as prognostic tools for TAVI recipients.
Implications
When selecting candidates to undergo TAVI, several multivariate risk scores have been widely used to estimate operative mortality based on patient characteristics. The STS score and the EuroSCORE are the most commonly used scoring systems.73 74 However, a disadvantage of both scores is that the main variables for scoring perioperative risk are medical diagnoses and comorbidities, which may not reflect the true ‘biological status’ of the patient.73 74 When considering valve procedures for patients, clinical practice guidelines recommend assessing frailty as one component of risk.5 7 Although a large number of frailty measures exist, there is currently little consensus on the optimal approach to assessing frailty in patients undergoing TAVI.2 Frailty has consistently been shown to significantly predict mortality68 and postoperative delirium,75 even after controlling for other risk factors, suggesting that use of any frailty assessment is better than none when selecting patients for TAVI. Systematically reviewing the operationalisation of frailty assessment in TAVI patients and pooling clinical outcomes of frail TAVI recipients will help better understand how frailty is assessed among TAVI patients, provide information on the prognosis of frail patients after TAVI, and can ultimately improve decisions related to treatment of AS.
To help achieve consensus on frailty measures to be applied in TAVI recipients, future studies should evaluate the prognostic value of frailty measures in TAVI recipients and determine the additional prognostic value of frailty measurement in addition to these established risk scores. Future studies should also compare prognosis of frail patients undergoing TAVI to frail patients undergoing surgical intervention or medical therapy. Few studies reported quality of life measures. In order to address the gaps in the literature future studies should measure quality of life before and after TAVI with use of standardised quality of life measurement tools such as the Short-Form 36.
Conclusion
In conclusion, frailty instruments for TAVI recipients varied across studies, leading to a range of frailty prevalence estimates and substantial heterogeneity. The results of this systematic review provide clinicians, patients and healthcare administrators, with potentially useful evidence on the prognosis of frail patients.
